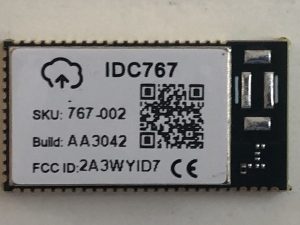

IDC767
£15.00
IDC767 is a fully integrated Dual Mode LE Audio (LC3 Codec AuraCast and UniCast) and Classic Bluetooth module
IDC767 is the IDC777 but with external antenna.
IDC767 is a fully integrated Dual Mode LE Audio and Classic Audio Bluetooth module. IDC767 offers both LE Audio (LC3 Codec Auracast and Unicast) and Bluetooth Classic (aptX, aptX-HD, apt-X Lossless, Snapdragon Sound). IDC767 offers best in class performance in every single aspect of Bluetooth. IDC767 is based on the latest generation Bluetooth 6.0 Qualcomm Audio chips. IDC767 is easy to supply and offers a long life.
Smallest Package: IDC767 comes in a small form factor at 11.8mm x 22.2mm. IDC767 is supplied Bluetooth certified so customers will not need to have to go through certification for the end product.
Fully Integrated: IDC767 offers a high level UART command interface (AudioAgent) that provides full control of all profiles such as UniCast and Auracast for LE Audio (LC3 Codec) and HFP, HSP or HFP-AG (HandsFree Voice), A2DP Source and Sink and AVRCP (Music Streaming), PBAP (Phone Book Access Profile) and MAP (Message Access Profile) for Classic. IDC767 connects to Android and iOS Apps using Bluetooth Low Energy, the Serial Protocol Profile (SPP) or HID (Over Classic, USB or BLE GATT). The module can act as receiver of Audio but also as a Transmitter. IDC767 can be a Central or Peripheral BLE device.
Audio Quality: IDC767 integrates LC3 Codec and Qualcomm SnapDragon Sound (including aptX, aptX-HD, aptX-Lossless) for better Audio performance with any device. In addition the user can configure the module to transmit the Audio received via a high quality integrated Analog Codec (100dBA SNR) or directly through a digital interface (I2S, PCM, SPDIF or USB).
Highest Performances: IDC767 offers very low power consumption (<4mAmp while streaming music, <0.1mAmp connected or Pairing). Additionally IDC767 supports an external Antenna to allow maximum range or better anteanna placement when in diffcult conditions.
Features
- LE Audio Auracast and Broadcast (LC3 Codec)
- Concurrent BLE and Classic Bluetooth
- Multiple Connections. Receiver or Transmitter
- Power: <4mA when streaming music
- Audio: Digital and Analog Output at -100 dB SNR
- I2S, PCM, 3 LED, UART, I2C, USB, IOs Interfaces
- Small: 11.8mm x 22.2mm
- External antenna
- Music (A2DP Source and Sink, AVRCP)
- HandsFree (HFP, HSP, HFP-AG)
- Connection to Smart Phones (Bluetooth Low Energy or SPP)
- HID over USB, Classic Bluetooth or GATT HID
- Music: SnapDragon Sound (aptX, aptX-HD, aptX-Lossless), AAC, SBC
- Handsfree: Ultra and Super Wide Band Speech
- Certified Bluetooth (SIG), FCC (US), RED (Europe), MIC (Japan), KCC (South Korea), SRRC (China)
Documentation
Software
| Title | ||
|---|---|---|
|
AA-USB-Flasher 910 downloads |
March 14, 2025 | Download |
|
AA-Serial-DFU 757 downloads |
March 24, 2025 | Download |
|
BLE DB Generator 205 downloads |
April 15, 2024 | Download |
|
Scanner-Android 381 downloads |
October 30, 2023 | View URL |
|
Scanner-iOS 280 downloads |
October 30, 2023 | View URL |
|
Firmware-Update-Android 526 downloads |
October 30, 2023 | View URL |
|
Firmware-Update-iOS 361 downloads |
October 30, 2023 | View URL |
|
Scanner-Android 106 downloads |
October 30, 2023 | Download |
|
Scanner-iOS 57 downloads |
October 30, 2023 | Download |
