IDC777
£15.00
IDC777 is a fully integrated Dual Mode LE Audio (LC3 Codec AuraCast and UniCast) and Classic Bluetooth module
IDC777 is a fully integrated Dual Mode LE Audio and Classic Audio Bluetooth module. IDC777 offers both LE Audio (LC3 Codec Auracast and Unicast) and Bluetooth Classic (aptX, aptX-HD, apt-X Lossless, Snapdragon Sound). IDC777 offers best in class performance in every single aspect of Bluetooth. IDC777 is based on the latest generation Bluetooth 5.3 Qualcomm Audio chip. IDC777 is easy to supply and offers a long life.
Smallest Package: IDC777 comes with an integrated antenna, running all the Bluetooth Stack and Codecs in a small form factor at 11.8mm x 22.2mm. IDC777 is supplied Bluetooth, FCC (US), RED (Europe), MIC (Japan), KCC (South Korea) and SRRC (China) certified so customers will not need to have to go through certification for the end product.
Fully Integrated: IDC777 offers a high level UART command interface (AudioAgent) that provides full control of all profiles such as UniCast and Auracast for LE Audio (LC3 Codec) and HFP, HSP or HFP-AG (HandsFree Voice), A2DP Source and Sink and AVRCP (Music Streaming) for Classic. IDC777 connects to Android and iOS Apps using Bluetooth Low Energy, the Serial Protocol Profile (SPP) or HID (Classic or over Gatt). The module can act as receiver of Audio but also as a Transmitter. IDC777 can be a Central or Peripheral BLE device. In Peripheral mode, it the users can create their own BLE profiles.
Audio Quality: IDC777 integrates LC3 Codec and Qualcomm SnapDragon Sound (including aptX, aptX-HD, aptX-Lossless) for better Audio performance with any device. In addition the user can configure the module to transmit the Audio received via a high quality integrated Analog Codec (100dBA SNR) or directly through a digital interface.
Highest Performances: IDC777 offers very low power consumption (<4mAmp while streaming music, <0.1mAmp connected or Pairing). Additionally IDC777 with its integrated high performance antenna allows a range of up to 25m connecting with a standard Smart Phone.
Features
- LE Audio Auracast and Broadcast (LC3 Codec)
- Concurrent BLE and Classic Bluetooth
- Multiple Connections. Receiver or Transmitter
- Power: <4mA when streaming music
- Audio: Digital and Analog Output at -100 dB SNR
- I2S, PCM, 3 LED, UART, I2C, USB, IOs Interfaces
- Small: 11.8mm x 22.2mm
- Integrated chip antenna
- Music (A2DP Source and Sink, AVRCP)
- HandsFree (HFP, HSP, HFP-AG)
- Connection to Smart Phones (Bluetooth Low Energy or SPP)
- HID over USB, Classic Bluetooth or GATT HID
- Music: SnapDragon Sound (aptX, aptX-HD, aptX-Lossless), AAC, SBC
- Handsfree: Ultra and Super Wide Band Speech
- Certified Bluetooth (SIG), FCC (US), RED (Europe), MIC (Japan), KCC (South Korea), SRRC (China)
Documentation
Software
| Title | ||
|---|---|---|
|
AA-USB-Flasher 608 downloads |
March 14, 2025 | Download |
|
AA-Serial-DFU 574 downloads |
March 24, 2025 | Download |
|
BLE DB Generator 155 downloads |
April 15, 2024 | Download |
|
Scanner-Android 309 downloads |
October 30, 2023 | View URL |
|
Scanner-iOS 224 downloads |
October 30, 2023 | View URL |
|
Firmware-Update-Android 422 downloads |
October 30, 2023 | View URL |
|
Firmware-Update-iOS 286 downloads |
October 30, 2023 | View URL |
|
Scanner-Android 71 downloads |
October 30, 2023 | Download |
|
Scanner-iOS 39 downloads |
October 30, 2023 | Download |
Firmware

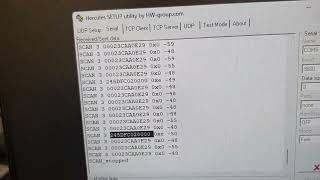

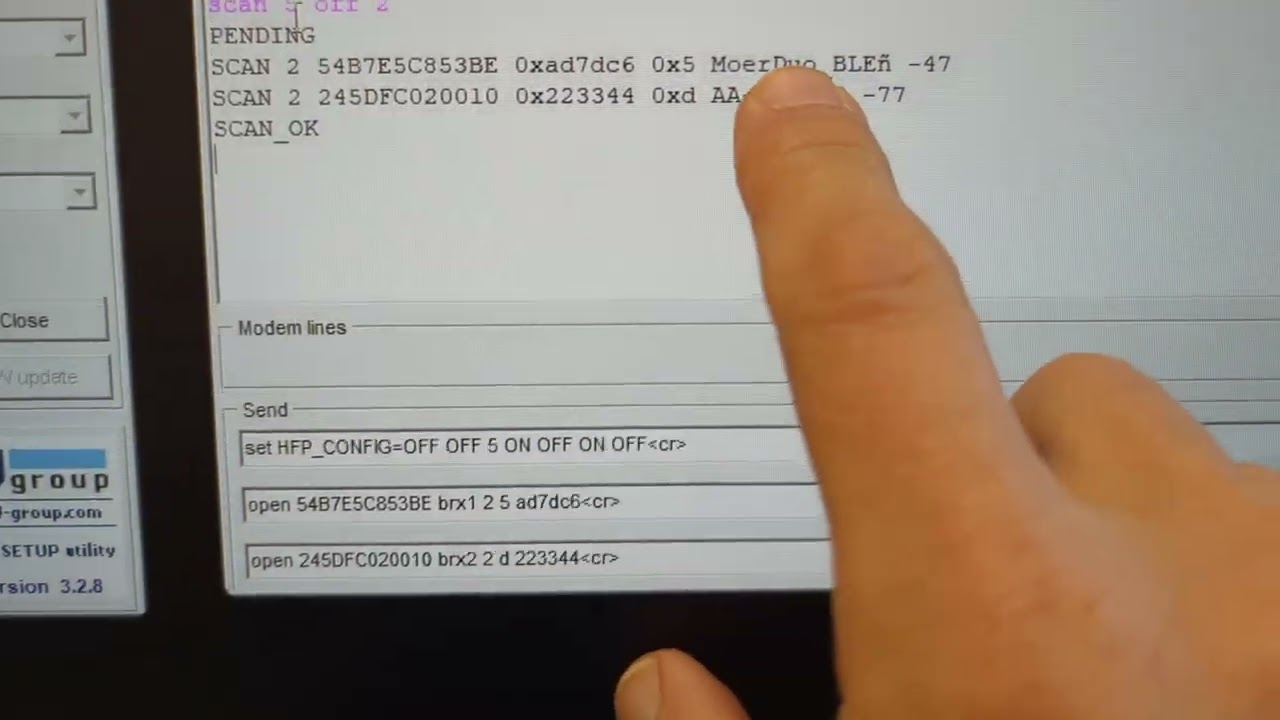

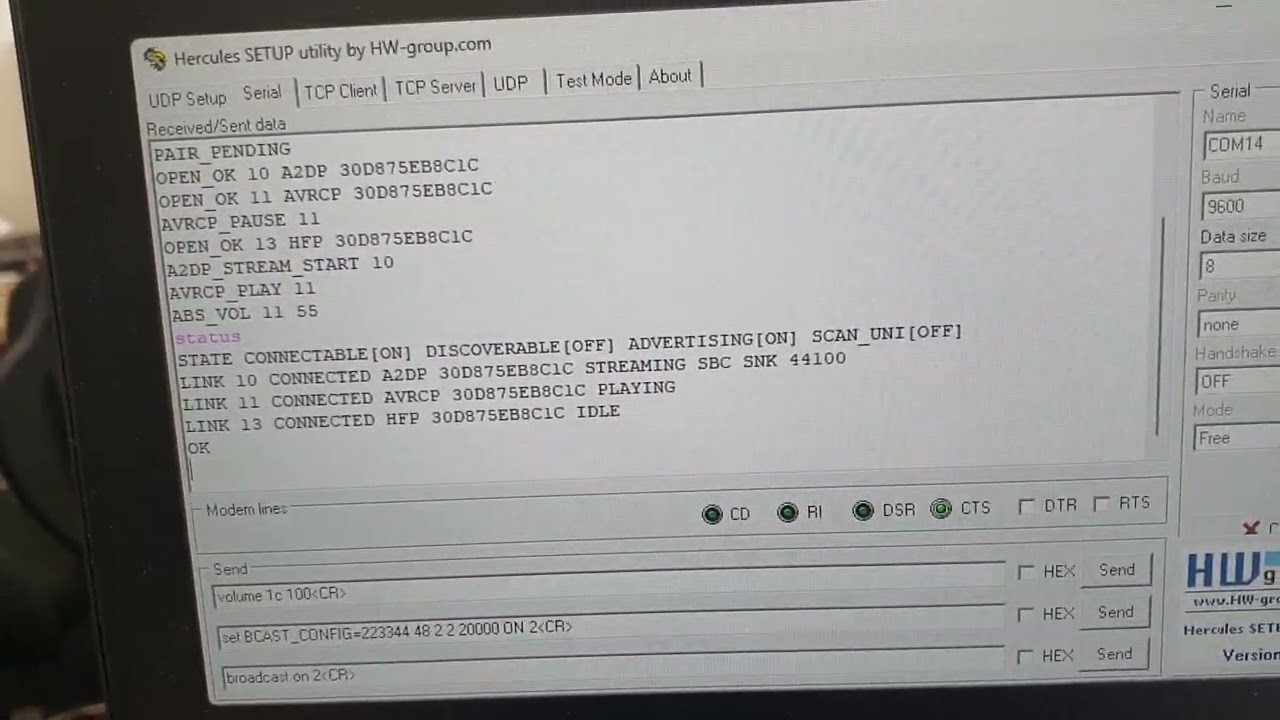

Videos
